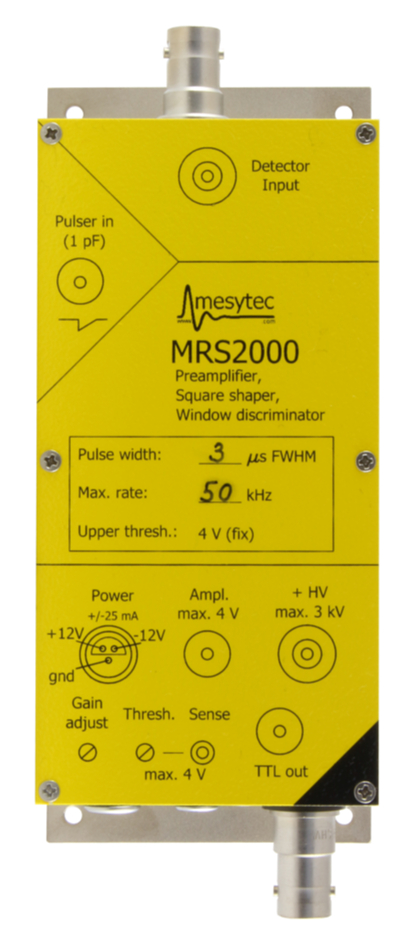

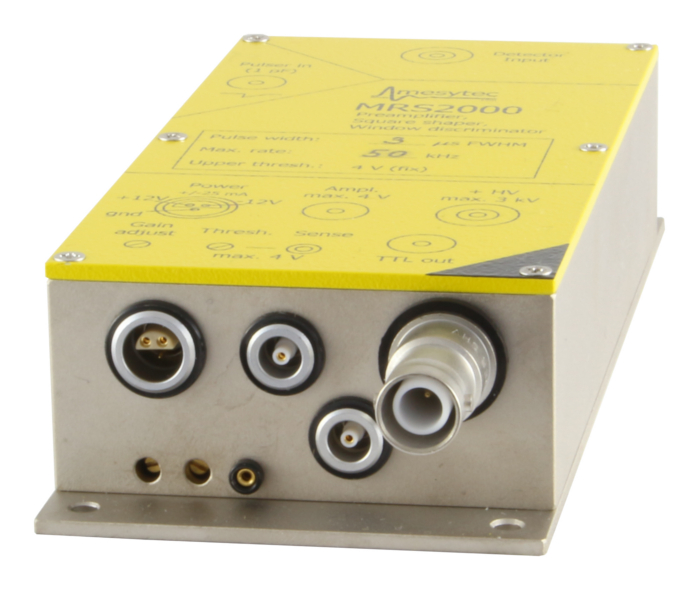

mesytec MRS-2000 is a preamplifier, shaper, windows discriminator with amplitude and TTL output. It is designed for neutron tubes and monitor counters. Due to the square, the amplitude resolution is significantly enhanced compared to standard amplifiers.
- Wide range of input sensitivity
- Square shaper amplifier with baseline restorer
- Window discriminator
- Gain and threshold adjustable
- Both outputs can be terminated with 50 Ohm
- 3 standard types for different tubes and monitors
