mesytec

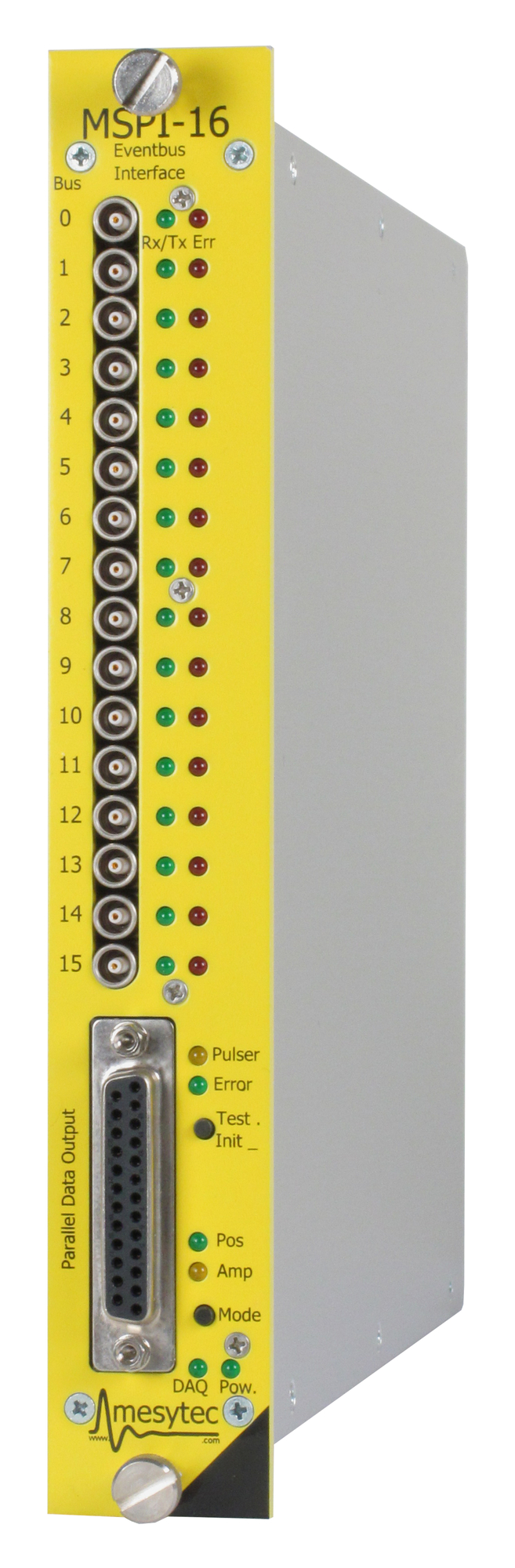

MSPI-16 is a
parallel data interface and controller unit for neutron detector
readout electronics. Frontend devices are connected over the
highspeed serial event bus. It provides the possibility to control all
internal setting of the connected modules.
It interfaces up to 16
MPSD-8+ via point to point connection on 16
event bus branches to a parallel output for external data acquisition systems
and histogrammers. Data are presented buffered (256 event buffer). Basic
features of the connected modules like pulser test and amplitude/position
mode can be controlled via front panel elements. The RS-232 and USB
interfaces allow detailed setup of all parameters of the connected frontend
electronics. Up to 128 position sensitive detector tubes can be handled with
one module.
