Detector Readout Systems
single wide VME module, compatible with VME64 and VME64x crates.
only uses VME power supply of +5V (max 4.5A) and +12V (max 1.5A).

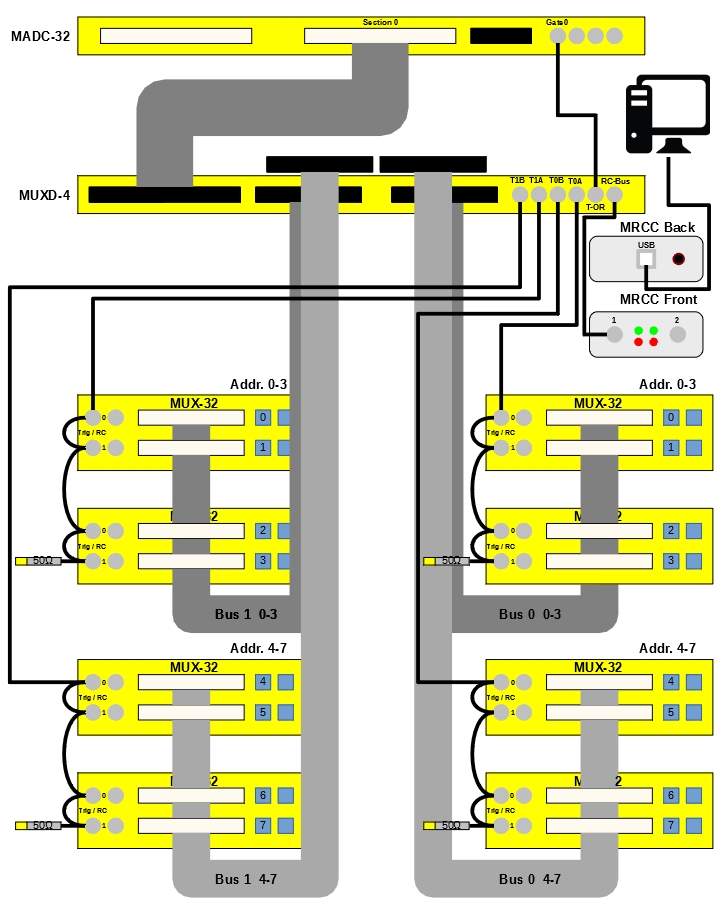

Supplies up to 16 MUX-16 devices on up to 4 MUX-busses (up to 40W total).
Bus length up to 3m.
4 MUX-buses, two of them on the motherboard behind the front connectors.
1 mesytec control bus can control up to 16 devices on 4 buses
4 Lemo IOs for trigger signals / control bus.
Every two share half of the Cbus address space.
Ored trigger output from 4 buses to start MADC-32.
4 bus outputs with two amplitudes and two positions are available on MADC-32 compatible 32pin header connector.
Output voltage for 4V MADC-32 range.
