mesycontrol is a remote control solution for detector readout systems by
mesytec. mesycontrol makes use of the mesytec RC bus controllers
(MRC-1/MRCC) to communicate with the actual hardware devices. For user
interaction a GUI application is provided.
MRC-1/MRCC connectivity via USB, serial port and network.
Client-server architecture using plain TCP as the transport. This enables the
graphical frontend to run and operate on machines without direct access to
the mesytec hardware.

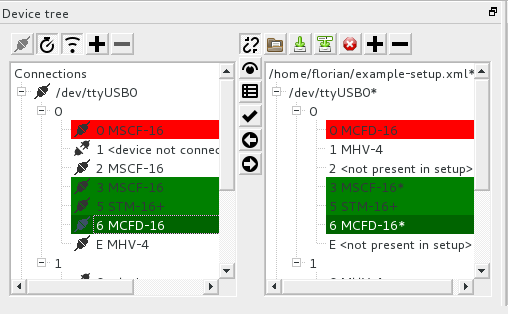

Storing and loading of single device configurations and complete setups
(multiple devices and multiple MRCs).
Tabular view/editing of device memory.

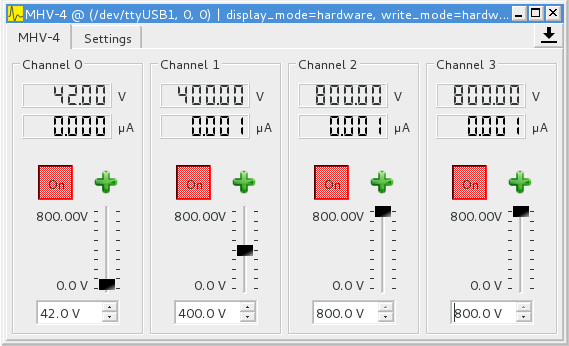

Custom GUIs for MHV-4, MSCF-16, MCFD-16 and STM-16+.
Support for MPD-4/8, MUX-16, MPRB-16
Polling of frequently changing parameters (e.g. voltage or current)
Cross-platform: both client and server run on Linux and Windows
Offline editing: device configurations can be created/edited without access
to the hardware.
mesycontrol is divided into two parts: mesycontrol_server handling MRC
connectivity and communication, and the client part (mesycontrol_gui)
connecting to running server processes via TCP.
The GUI client will transparently spawn its own server process if the user
requests a local MRC connection via serial port or USB.
In case the client PC does not have a direct connection to an MRC-1/MRCC the
server can be run stand-alone on a machine with access to the hardware.
The GUI client then connects via a TCP connection to the remotely running
The client supports connections to multiple servers and is thus able to control
multiple MRC-1/MRCCs. Multiple clients can connect to the same server (only one
client gets write access).
Add support for the older MHV-4_V20-400V model with idc code 17.
Temporarily removed due to packaging issues. Updated packages coming soon.
Support the Window Discriminator found on some newer MSCF-16 versions. In the MSCF GUI a
column called "Upper Thresholds" has been added and is enabled if WinDis
support has been detected.
